Chrome Plated Mechanical Core Shafts Hollow Piston Rod Cylinder HRC 40

Name: Chrome Plated Mechanical Core Shafts Hollow Piston Rod Cylinder HRC 40
Brand: WEIWO
Price: 1.25 USD

Quality Chrome Plated Mechanical Core Shafts Hollow Piston Rod Cylinder HRC 40 for sale

Brand Name : WEIWO

Model Number : K25-50-1233-6

Certification : IATF16949:2016

Place of Origin : NINGBO

MOQ : 200 sets

Price : USD1.25~ 1.45 /set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 sets per day

Delivery Time : 15-25days after PO confirmed

Packaging Details : 10-50 PCS in one carton or plastic blister tray, outside wooden pallet or wooden box.

Outer Diameter : 12.5MM

Total Length : 310MM

OD of one end : M8 X 1.25

OD of another end : M10 X 1.25

Material : S 45 C

Chrome Thickness : 10 ~ 25 μm

Contact Now

45 # Chrome Plated Core Roller Sleeve With Mechanical Processing Production

PARAMETER

Item No.	K25-50-1233-6
Body Material	#45 #35
Diameter	D12.5-0.01/-0.03
Length	customizable
Depth of quenched layer	0.6-1.0
Hardness	HRC 40-46
Roughness	Rz< 0.65
Single Plating Thickness	>15 μm
Plating	900-1200 HV0.1
Microcrack	>600 pcs/m²
Blending test maximum pressure 52KN, transformation over 15mm

Specification:

Chrome Thickness	10~25 μm
Chrome Hardness	850 HV Min
Roughness	Ra 0.2 Micron Max
Straightness	0.2/1000mm
Yield Strength	According to the steel material and customer requirement
Tensile Strength	According to the steel material and customer requirement
Elongation	According to the steel material
Bend Test	According to customer requirement

Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging

Description:

Surface treatment	Blackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding…
Quality Assurance	IATF16949:2016 certified/SGS/TUV
Drawing formats	Solid works, Pro/Engineer, AutoCAD, UG, PDF
Equipment used	Japan 5-axis TSUGAMI-B-038T CNC turing machine
	Japan 4-axis GAMA DMN-650 machining center
	Cylindrical Bore Grinders
	Wire EDM
	Magnetic grinding machine/ grinding Vibration machining
	Oven
	Ultrasonic cleaning machine
	Vacuum packing machine
Inspection device	VMS2.5d measuring machine
	Japan Mitutoyo tool microscope
	Japan Mitutoyo digimatic micrometer
	Japan Mitutoyo hardness tester
	Japan Mitutoyo calipers
	Japan Mitutoyo dial indicator
	Japan Mitutoyo height measuring tool
	Japan Mitutoyo tubular inside micrometer
	Japan Marble platform
	Go No Go gauge
	Electronic digital display caliper Ring gauges
Industry used	Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication…

Advantages:

1. Mateiral and technology from TaiWan .
2. Factory directly supply.
3. Extensive application and high precision performance.
4. Simple installation.
5. Durable.
6. All specification can be customized.

Application:

It is applicable to winding and unwinding shaft of the related machines in coating,cutting,printing,compounding,paper making,bag making,plastic items,specially the occasion of the high-efficient roundness required or surface winding and unwinding of the paper tube.Moreover,it also can improve efficiency and quality of the products.

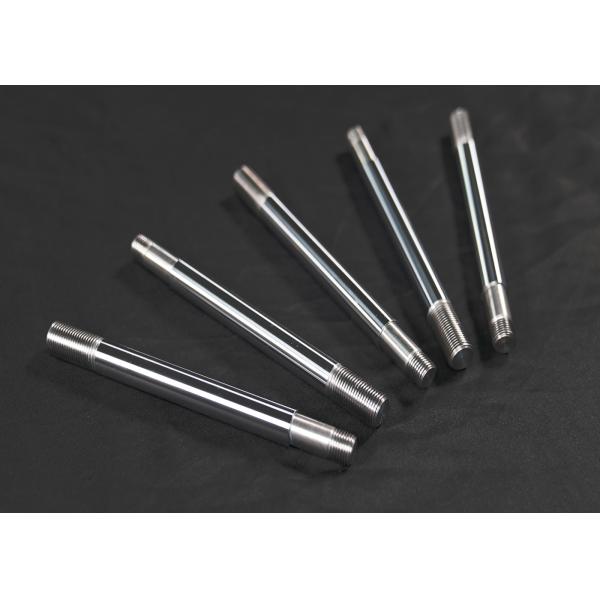

Picture:
